32" RCA TV and Outdoor TV Enclosure Ultimate Kit-The TV Shield

MSRP: $1,079.99
Was: $1,079.99
Now: $1,029.99
(You save $50.00 )
(No reviews yet) Write a Review
Free Shipping
Front Panel:
Fan System:
Fan Included
External Mount:
Full Motion Mount
TV Included
Adding to cart… The item has been added

Transform Your Outdoor Living Space with a The TV Shield Weatherproof TV Case


Overview     Specifications     Protects Against     Protection Notes


Video Demonstration View Customer Photos

Quick Specs Overview:

Maximum INSIDE dimensions
Width (29.5")
Height (18.0")
Depth (3.8")

OUTSIDE dimensions
Width (34.25")
Height (21.9")
Depth (4.9")

16 LBS (17 LBs with one fan)

*Please measure the outside dimensions of your TV or Display, or the planned TV, and compare to the inside dimensions listed on this page


Installation Instructions:

Owner's Manual
Video: The TV Shield Installation Instructions


Enclosure Overview:

 Unit Protects 30-32" TV's

The TV Shield® is a universal PLASMA, LCD or LED TV enclosure that provides comprehensive water, dust, theft & tamper protection for most residential and commercial TVs and Displays. These weatherproof TV enclosures preserve and protect the TV, and provide an ultra-clear view of the television or flat panel display when closed, and when opened offer a direct view of the TV or display. Weather-resistant, lightweight, durable, secure and affordable, The TV Shield was created by Florida residents and engineered for over two years to withstand hot summers and harsh rain in everything from tropical climates, to harsh cold climates (with heater). The unit is manufactured in the USA using a HMWPE High Molecular-Weight Polyethylene plastic case (an outdoor plastic built to last 20 years or more). The unit also features a guaranteed not to crack, thick, shatter-resistant front panel built out of ultra-clear grade Lexan® polycarbonate (the same material used in bullet proof glass, racecar and spacecraft windshields). The TV Shield is secured with two metal chambered and keyed locks which prevent theft, tampering and vandalism of your television.

The TV Shield is also available paired with a TV in a complete outdoor TV kit. Our customers favor The TV Shield for TV protection over other TV cabinets and expensive outdoor TVs due to its low cost, install friendly design, durability, water-resistance and security. Grab an outdoor TV enclosure today for your patio by the pool, the porch, your balcony, or even your business. PEC enclosures are currently used in over 38,000 locations in 53 countries!


  • Entire rainproof unit is sealed to defend TV against moisture intrusion and water damage, using our ExactSeal sealing system
  • Thermostatically controlled 36CFM, 115V filtered fan system
  • Protective front panel props open easily for a direct view of TV
  • Shatter-resistant front panel to defend the screen
  • Dual high strength metal, chambered key lock system to protect your investment
  • Windproof back housing manufactured with outdoor plastics that fortifies the TV or display against impact
  • Two louvered vents with bug and moisture screen that prevent heat buildup and bug intrusion which could damage the monitor
  • Rounded corners for child safety and hazard prevention in institutional environments
  • Lightweight and easy to install
  • Universal design that works with any standard VESA mount
  • The TV Shield is a unique and patented design
  • PEC units are MADE IN THE USA

The TV Shield weatherproof outdoor TV enclosure

Below we have a description of each product and why we chose it for this combo kit:

1. The TV Shield 30-32"

This model of The TV Shield is designed for 30 - 32 inch digital displays and televisions. These weatherproof enclosures provide water, rain and impact protection for your LCD, LED or Plasma displays and televisions. Scroll to the bottom of the page for full a description of The TV Shield.

2. Adjustable Tilt & Swivel Mount

The FMMPMD 43 adjustable universal Full motion mount is designed for small flat panel displays 23" up to 55" and it holds up to 77 lbs. This is the ideal mount for our 30-32" The TV Shield  and hosts a Tilt range of -5 to +15 degrees and swivel capability 0 deg/ up to 180 deg.

  • Distance to Wall - 2.0"- 20.28"
  • Universal Design
  • Max VESA compatible 400x400
  • Includes manual and all hardware
  • UL Listed

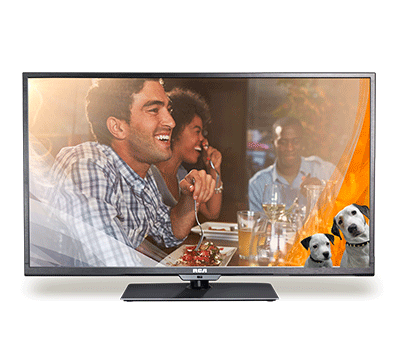

3. RCA 32" Commercial Value LED HDTV

TCL 40" 1080p LED-LCD SMART TV - 16:9 - HDTV 1080p - 120 Hz


RCA Commercial TV's are loaded with features like Key Lock, Volume Limiter, Theft Protection, and more to help deliver you the best high definition entertainment to your guests.



· Initial Channel

· Volume Limiter/Initial Volume

· Master and Guest Remotes

· Front Panel/Menu Lock

· USB Clone Programming

· 1 Year Warranty with Advance Replacement



(W x H x D):

29.7 x 17.4 x3"


10.9 lbs

Shipping Weight:

14.5 lbs

VESA Pattern:

200mm x 100mm


Diagonal Screen Size: 32.32"

Display Resolution: 1366 x 768

Response Time: 8 ms

Brightness: 200 cd/m2

Viewing Angle: 176°×176°



Channel Labeling:

Allows channels to have individual customized names

Initial Channel:

Sets the input/channel for the TV to tune when turned on

Volume Limiter/Initial Volume:

Sets the minimum, maximum and initial volume settings when the TV is turned on

USB Cloning Capable:

Allow supplication of TV configuration for easy installation

USB File Play:

Allows guests to play MP3 and view JPG files, as well as charge mobile devices

Auto Power-Off:

Allows the TV to turn off after a selectable period of inactivity

Master and Guest Remotes:

Separate remotes for configuration and operation

Front Panel/Menu Lockout:

Disables front panel and menu controls to make television "tamper proof"

Power On/Off Scheduler:

Sets recurring time for the TV to power on and off

Energy-Saving Features:

Auto power-off, less than 1 watt in standby mode, low power LED, no signal power-off

IR Pass-Thru:

Allows control of an external device without the need for direct sight





Power Supply:

AC 100-240V 60Hz

Power Consumption:

<55 W

Standby Consumption:

<1 W



Limited Warranty:

One-Year replacement, provides for minimal downtime by offering advance replacement shipping instead of on-site repair



User Remote (R230D1):


Master Remote (R230D2):

Not Included (Optional)

Swivel Stand:


Direct TV DRE Kit:

Not Included (Optional)

Anti-Theft Security Lock Kit:


4. Fan Cooling Package

The recessed fan cooling system is built to continually filter hot air out of the unit pulling fresh cool air in and creating an air pocket between the screen of the TV or display and the clear front panel of the unit. The fan power cord has a built-in thermostatic control which turns the fan on at 88 degrees and off at 78 degrees to ensure that your outdoor display case stays at the proper temperature.


5. Moisture Control Gel Case

We have included this because the moisture control gel case absorbs moisture from inside the enclosure. This is a protective measure and very worth purchasing for your TV investment and protection.

6. Cleaner & Polish Combo Kit

The TV Shield's & The Display Shield's front panels are made of ultra-clear polycarbonate. We feel that optimal viewing of your TV is going to be very important to you. Very simply this cleaner and polish kit helps keep the screen scratch free, smudge free and optically clear. The cleaner and clearer, the better your viewing experience will be. We highly recommend using this product. Also be sure to not use paper towels ever on your TV screen or The TV Shield screen as they generally are abrasive. Refer to your TV's instructions for optimal cleaning of your TV's screen. Do not use this cleaner or polish on your TV.




Compare the outside dimensions of your TV or display with dimensions below:

 Unit Protects 30-32" TV 's

Maximum INSIDE dimensions
Width (29.5")
Height (18.0")
Depth (3.8")

OUTSIDE dimensions
Width (34.25")
Height (21.90")
Depth (4.90")

WEIGHT: 16 LBS (17 LBs with one fan)

*Please measure the outside dimensions of your TV, or the planned TV, and compare to the inside dimensions listed on this page.


  • .177 Inch thick, ultra-clear grade shatter resistant Lexan® polycarbonate front shield
  • .250 Inch thick HMWPE High Molecular-weight Polyethylene plastic back housing, manufactured with outdoor plastic
  • Two openings for cords and wiring with self-sealing grommets
  • Two high strength, metal chambered and keyed locks
  • Two louvered vents with bug screen (upgradeable for wash down facilities or unique environments)
  • Proprietary "prop arm" system (one in each top corner) to keep shield open for a direct view of TV

Protects Displays, Monitors and TVs from everything in any environment:

  • Water (Rain, pool splashes, sprinklers, wash downs)

  • Moisture (Condensation, dew, steam, humidity, dampness)

  • Dust (Grime build up)

  • Tampering (Burglary, theft, vandalism, attempted destruction of product)

  • Pests (Bugs, insects)

  • High impact (Storms, branches, baseballs, flying objects)

  • Extreme temperatures (Hot and cold)

  • Sun

Other things you should know:

  • This protective TV case is not designed to be water-submerged

  • Thermostatic fans that click on at 88° and off at 78° are available for all enclosures, and included with some models and kits

  • Thermostatic heaters are available upon request (turns on at 41° F and turns off at 47°)

  • Graffiti like spray paint can be washed off of screen with special removal spray, and dry-erase markers are usable on the front panel

    * Protective Enclosures Company, LLC will not be held responsible for orders placed for TV's or Displays over the listed specifications, and although we will accept a return, there will be a 10% restocking fee assessed, as well as the customer will be responsible for actual shipping and return shipping of the unit. If you plan to use enclosure outside of the recommended and listed specifications, please make sure it will work for you before you order. By purchasing, you acknowledge that you have read and accept these terms and will hold harmless, PEC and all subsidiaries, business partners and officers.
